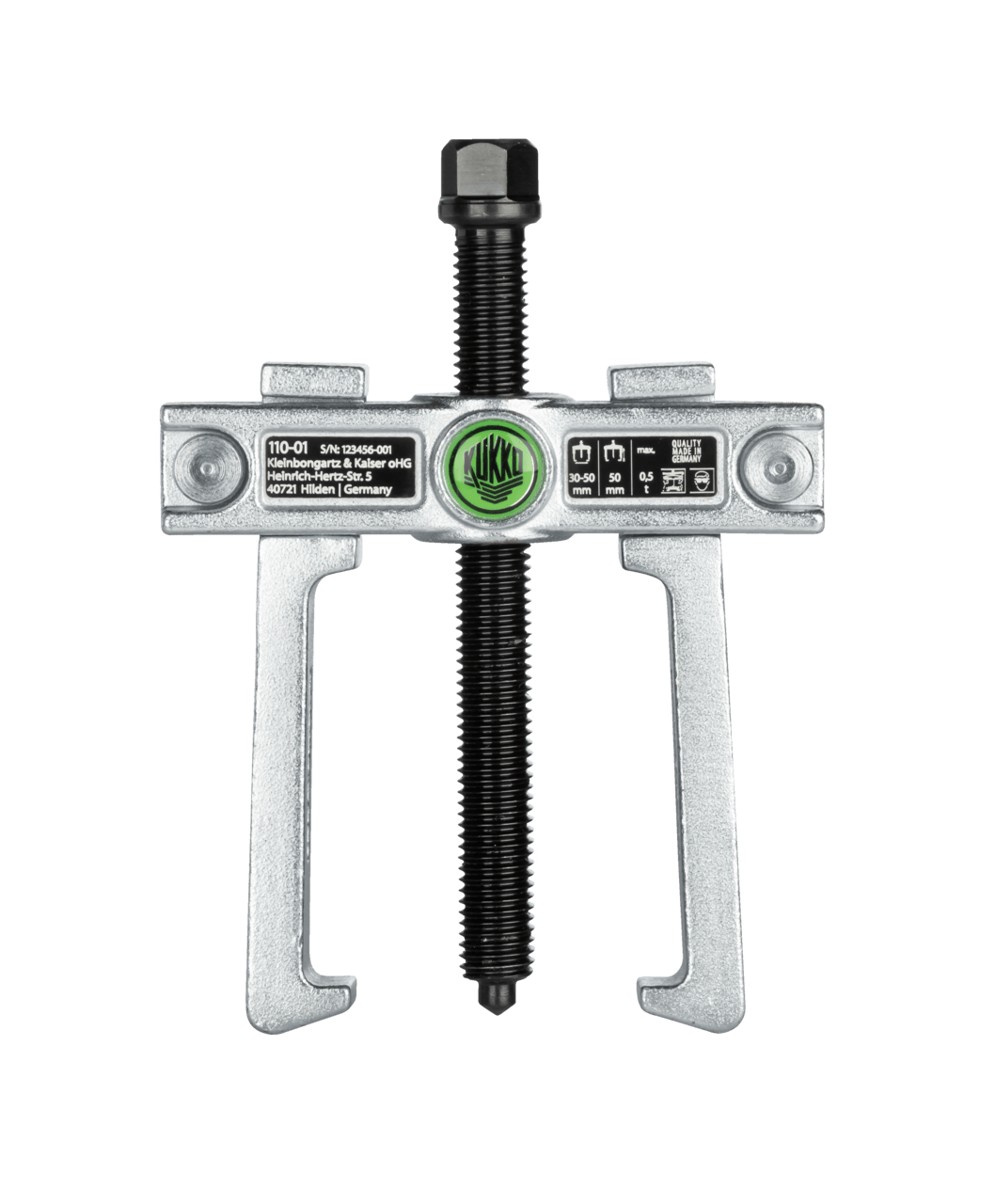

Kukko 110-01 Universal 2-Jaw Puller Techno 1 3/16 - 2 inch (30 - 50mm)

|
Kukko ToolsSKU: WS03-110-01
filler

Price:
Sale price$110.80

Description

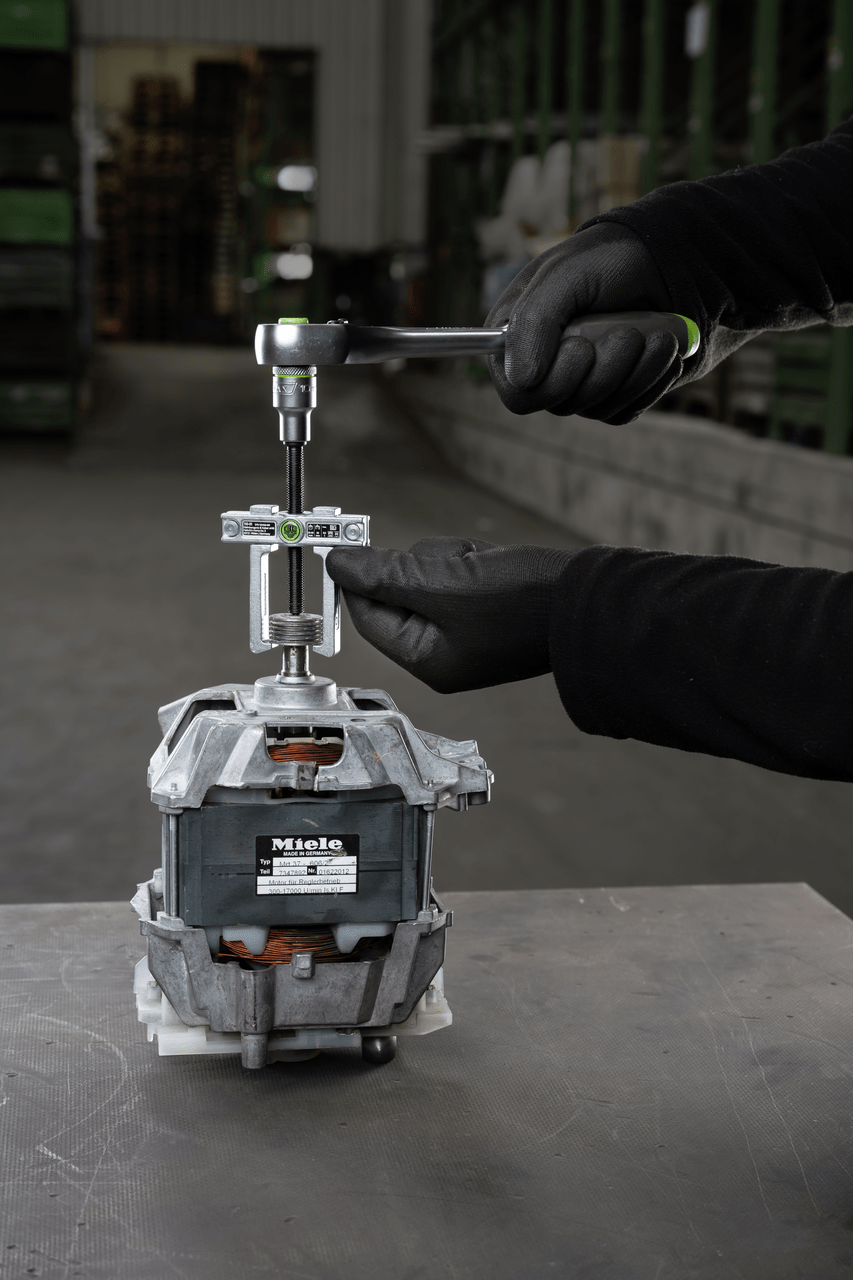

  • For removing bearings, gears, discs, etc.
  • Standard pulling hook.
  • The pulling jaws are consistently straight and equally slim.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Two-arm design for space-saving operation.
  • Parallel pulling hooks in every position, even with full load.
  • Mechanical pressure screw.
  • Exchangeable spindle top (as from size 110-1).
  • Milled thread treated with special coating
  • MPN #: 110-01
  • Shipping Disclaimer : If the product has to ship directly from the manufacturer it may take 5-7 business days.


Technical attribute

Metric

Imperial

Spread 30 - 50 mm 1 3/16 - 2 inch
Depth 50 mm 2 inch
Spread used internal 70 - 140 mm 2 3/4 - 5 1/2 inch
Hexagon drive (male) 10 mm
Maximum load 0,5 t 0.5 US t
Number of jaws 2 2
Weight 0.265 kg
Space below 7 mm 1/4 inch
Space next to it 15 mm 5/8 inch



Product Data Sheet


Advantage

  • Turning the pulling hooks enables them to be used both internally and externally.

  • Spindle head band prevents the wrench from slipping off.

  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.



KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.


Functionality

  • Puller Economy
