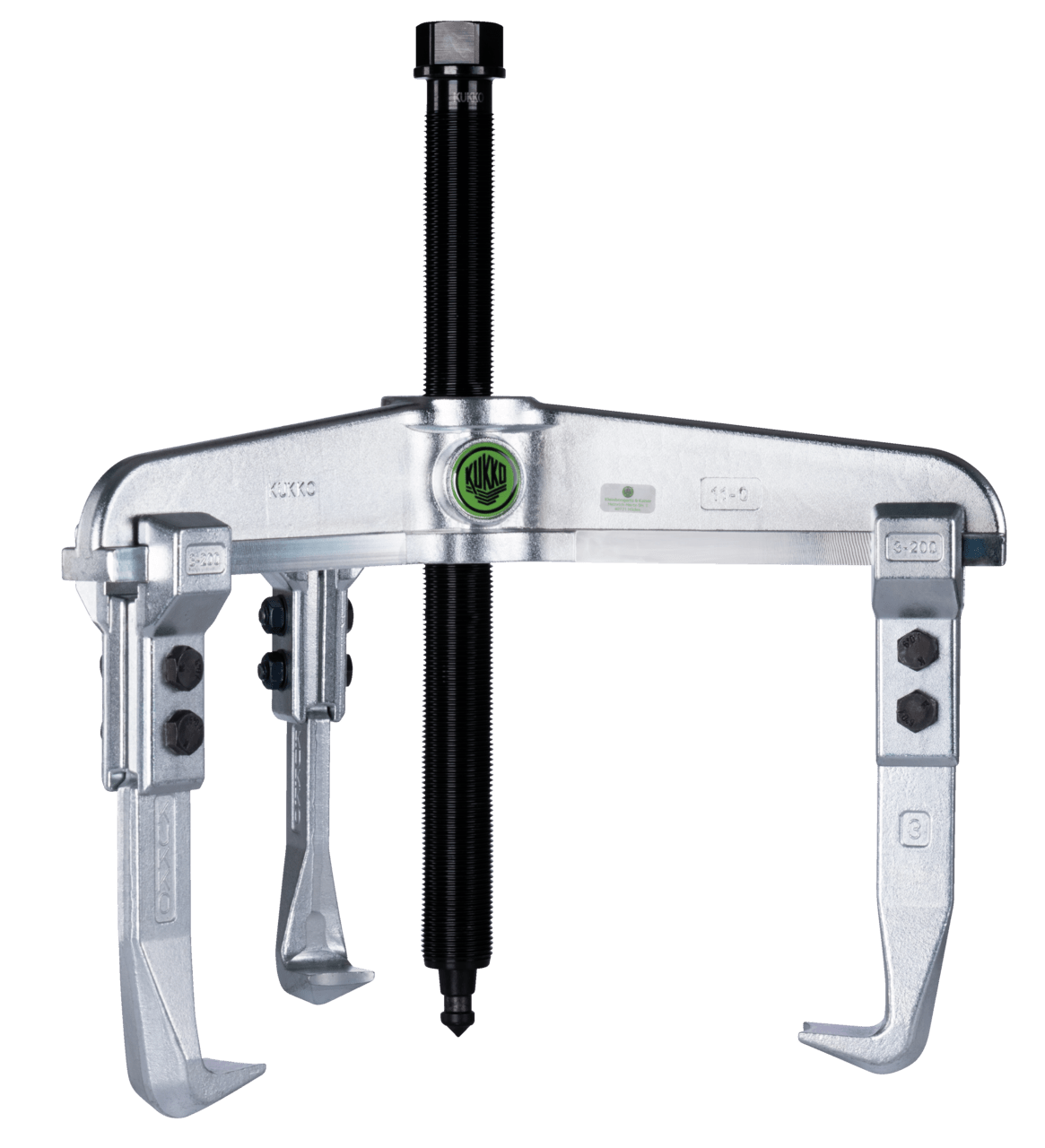

Kukko 11-1-A5 Universal 3-jaw External And Internal Puller - 7 1/2 - 20 1/2 inch (190 - 520 mm)

|
Kukko ToolsSKU: WS03-11-1-A5
filler

Price:
Sale price$2,604.30

Description

Description:

  • For removing bearings, gears, discs, etc
  • High performance is guaranteed.
  • Standard pulling hook.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
  • If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller series 20.
  • MPN #: 11-1-A5

  • Shipping Disclaimer: If the product has to ship directly from the manufacturer it may take 5-7 business days.



Technical attribute

Metric

Imperial

Spread

190 - 520 mm

7 1/2 - 20 1/2 inch

Depth

500 mm

19 3/4 inch

Spread used internal

280 - 600 mm

11 1/32 - 23 5/8 inch

Space below

20 mm

3/4 inch

Space next to it

67 mm

2 5/8 inch

Hexagon drive (male)

41 mm

Maximum load

20 t

22 US t

Maximum torque

650 Nm

479.5 ft lb

Weight

27.57 kg

Jaws

3

3



Product Data Sheet

Advantage

  • Variable reach thanks to optional jaw extensions.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
  • Spindle head band prevents the wrench from slipping off.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.
  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
  • Hydraulic spindle series 8 for particularly tight-fitting parts also available as an option.
  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.


KUKKO quality standards

  • Quality made in Germany.

  • Strong design, high performance and long service life.

  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

  • Safety label to ensure protection of intellectual property.

  • A tube of KUKKO special grease included for pressure spindle.

Functionality

  • Pullers with sliding, parallel jaws
