Save $129,287.01
Oni ToolsSKU: ONI787C
filler
Price:
$111.99 $129,399

Description

  • Recision timing locks align cam & crank on 2.7/3.0 TDV6 for accurate belt service; reduces comebacks.

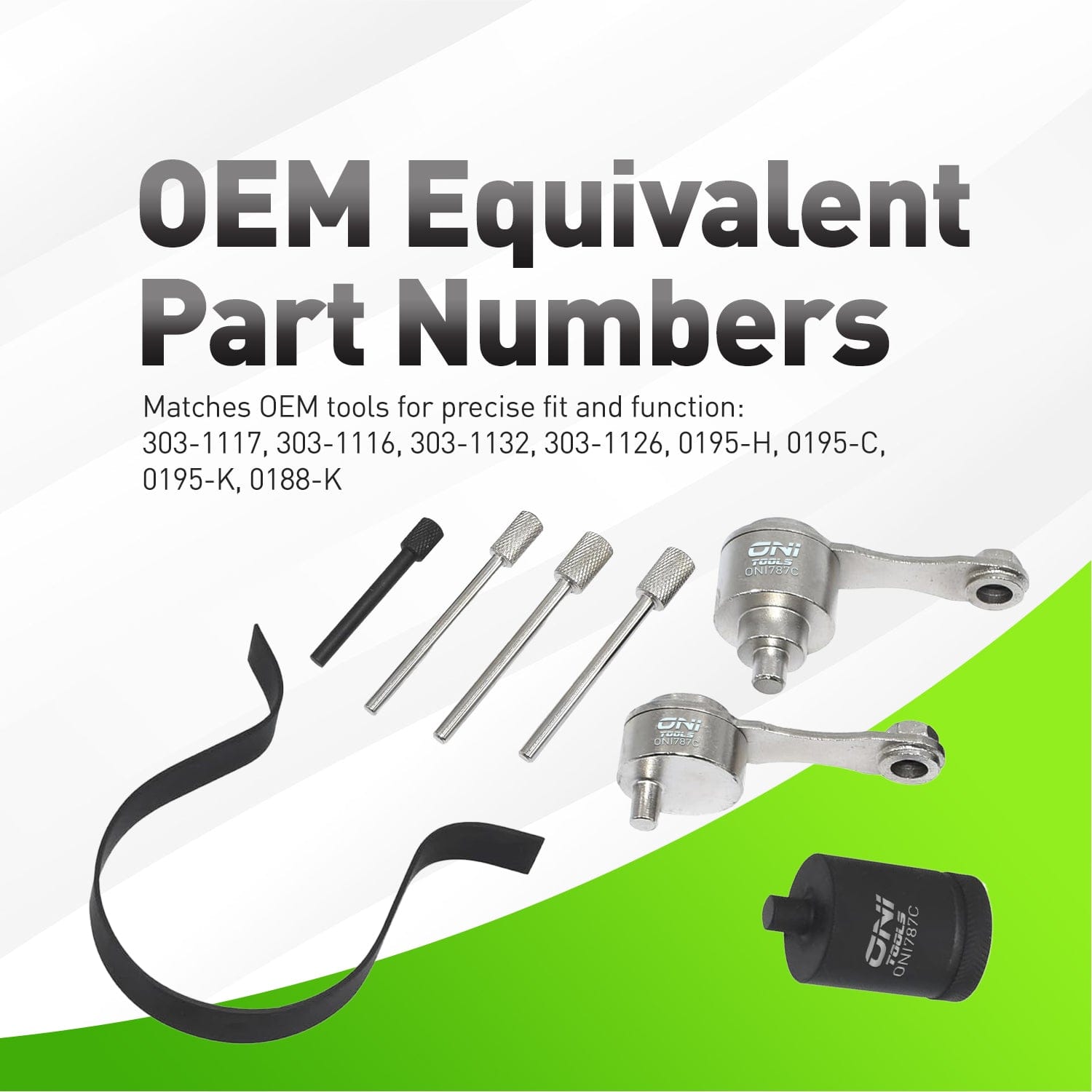

  • Replaces OE tools 303-1117 (auto), 303-1116 (manual), 303-1132, 303-1126; verified fit.

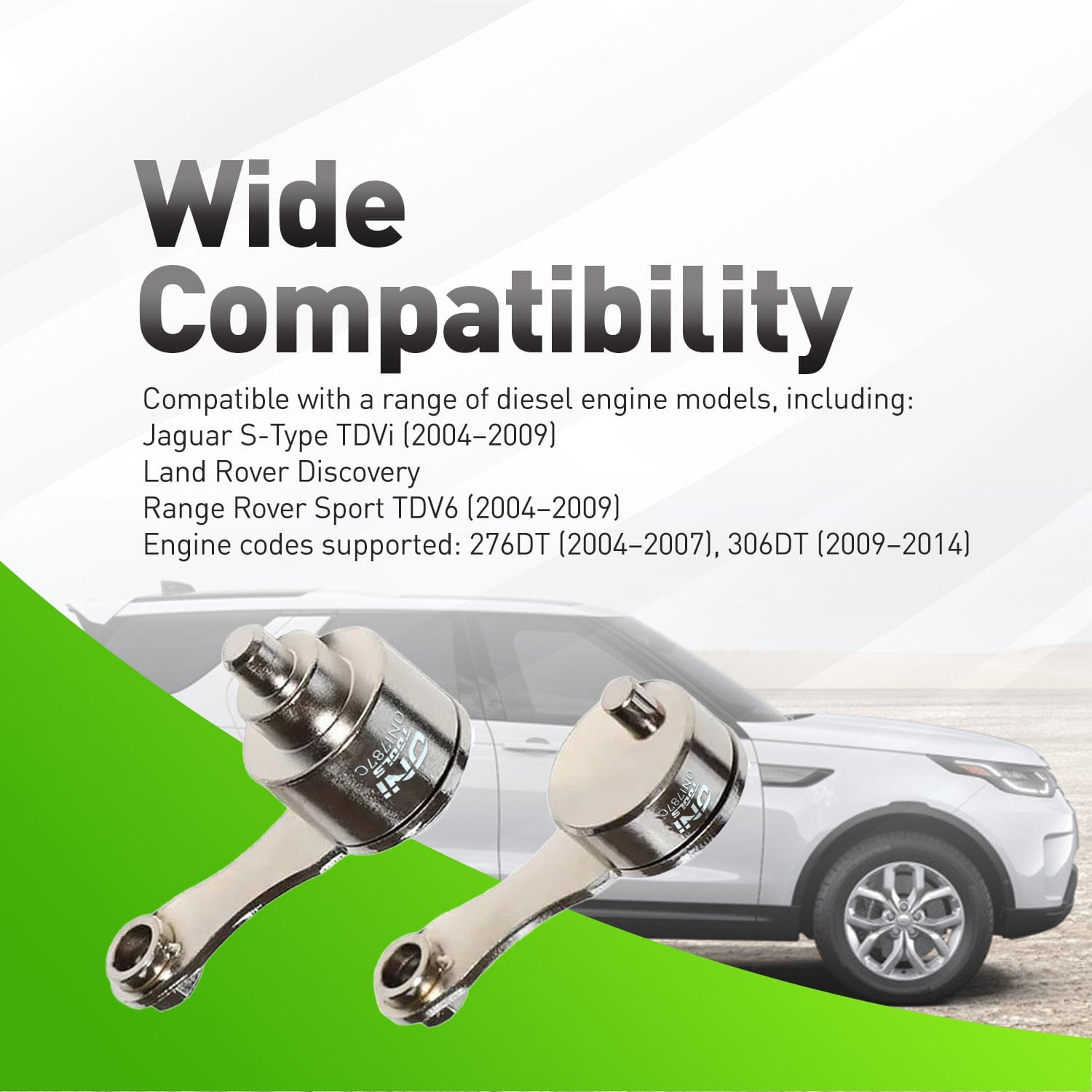

  • Vehicle coverage: Discovery 3/4, Range Rover Sport, Jaguar S-Type/XF/XJ 2.7D & 3.0D.

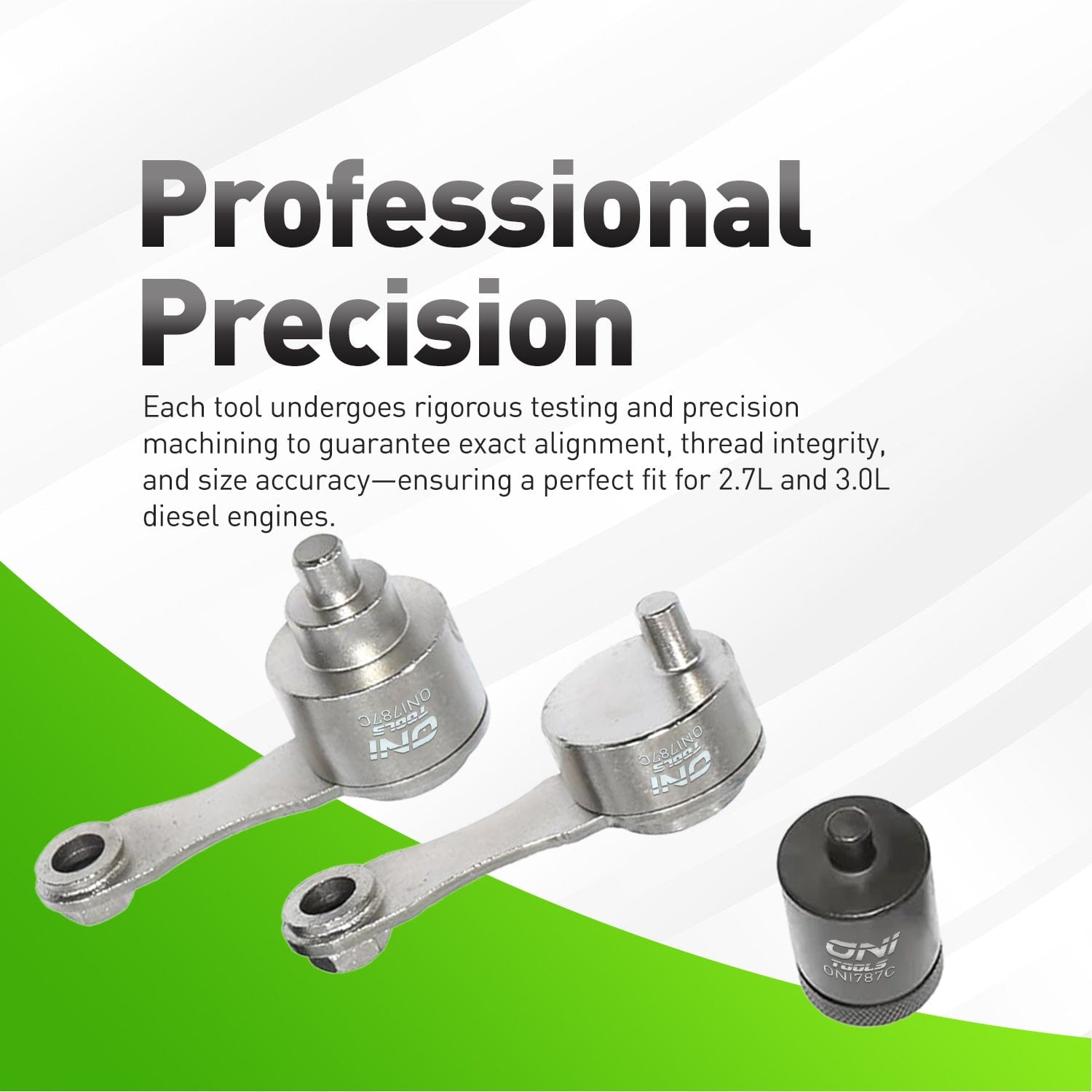

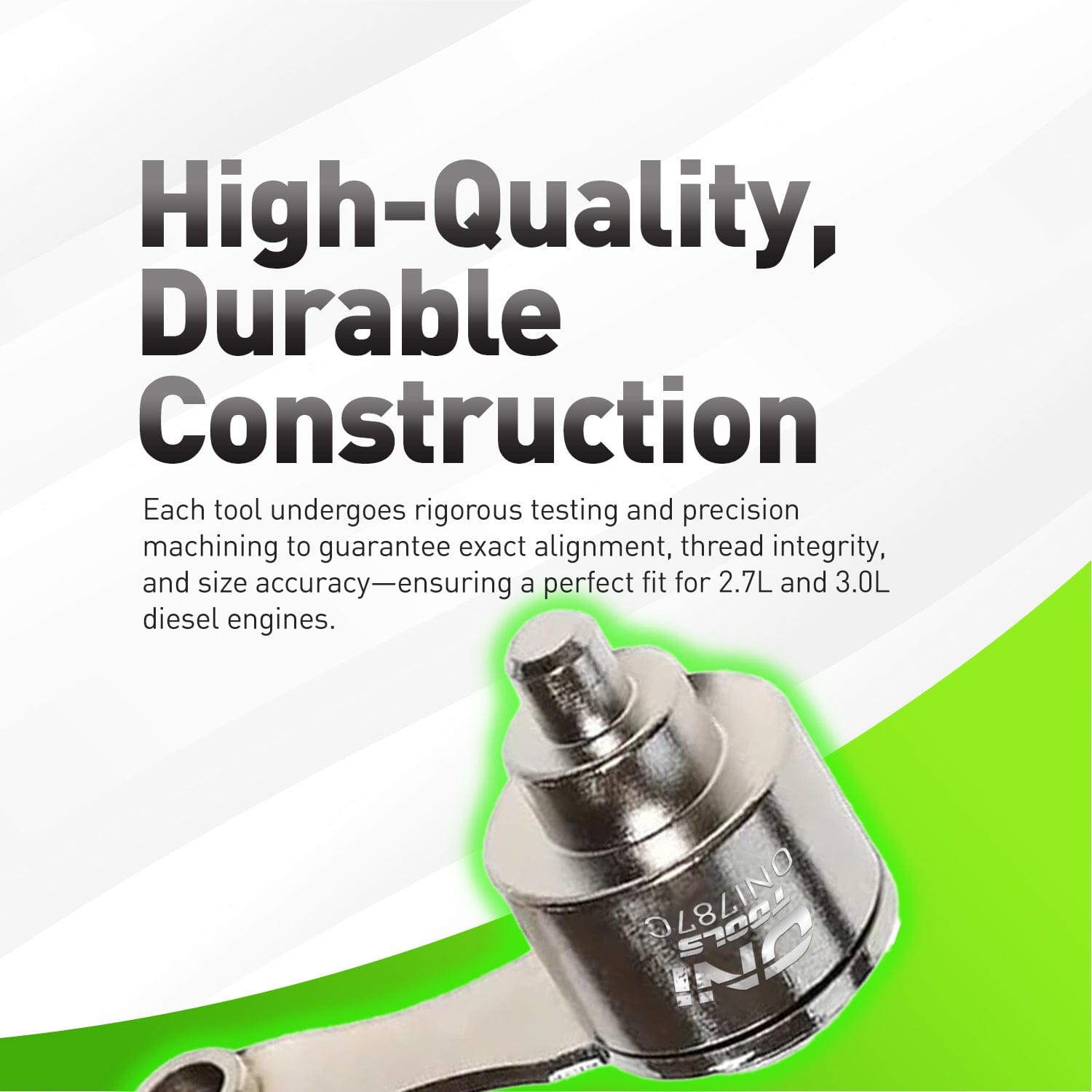

  • Hardened steel components; tight tolerances for repeatable results in pro shops.

  • Complete kit for belt replacement & timing checks; includes pins and flywheel locks.

    Fitment Chart

    Make Model Engine Years
    Land Rover Discovery 3 (LR3) 2.7 TDV6 (276DT) 2004–2009
    Land Rover Discovery 4 (LR4) 3.0 TDV6/SDV6 (306DT) 2009–2012*
    Land Rover Range Rover Sport 2.7 TDV6 2005–2009
    Land Rover Range Rover Sport 3.0 TDV6/SDV6 (306DT) 2010–2013*
    Jaguar S-Type 2.7D TDVi 2004–2008
    Jaguar XF 2.7D / 3.0D 2008–2012
    Jaguar XJ (X351) 3.0D 2010–2012

    *Fitment range varies by market; tool set covers 2.7/3.0 TDV6 diesel applications from 2004 onward.

    Service JLR TDV6 engines with confidence. This complete camshaft timing and crank locking kit is engineered for Land Rover and Jaguar 2.7D/3.0D V6 models, enabling precise alignment during timing belt replacement and engine repairs. The set replaces OE tools 303-1117 (automatic flywheel lock), 303-1116 (manual flywheel lock), 303-1132 (cam sprocket aligning tool), and 303-1126 (cam timing pins). Precision-machined, heat-treated steel delivers durability and repeatable accuracy for busy workshops. Compatible with Discovery 3/4, Range Rover Sport, and Jaguar S-Type/XF/XJ fitted with 276DT or 306DT diesel engines. Whether you’re a dealership technician or a skilled DIYer, this kit helps prevent timing errors, protects valves and pistons, and speeds up belt services with factory-level results.
